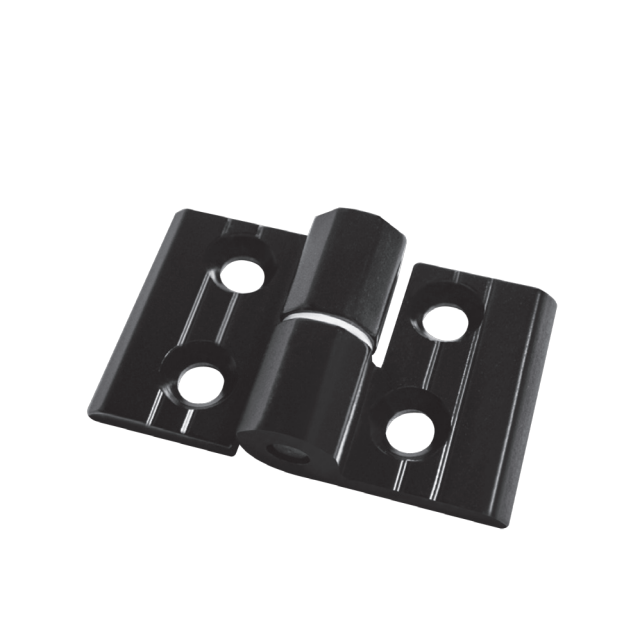

可拆式活頁
Technical Data ( 技術&Data )
|
Basic structure Material(本體材質) |
ALDC |
| Basic structure Color(本體顏色) | 黑色 |
| Washer Material(墊圈材質) | 塑膠 |
| Washer Color(墊圈顏色) | 白色 |

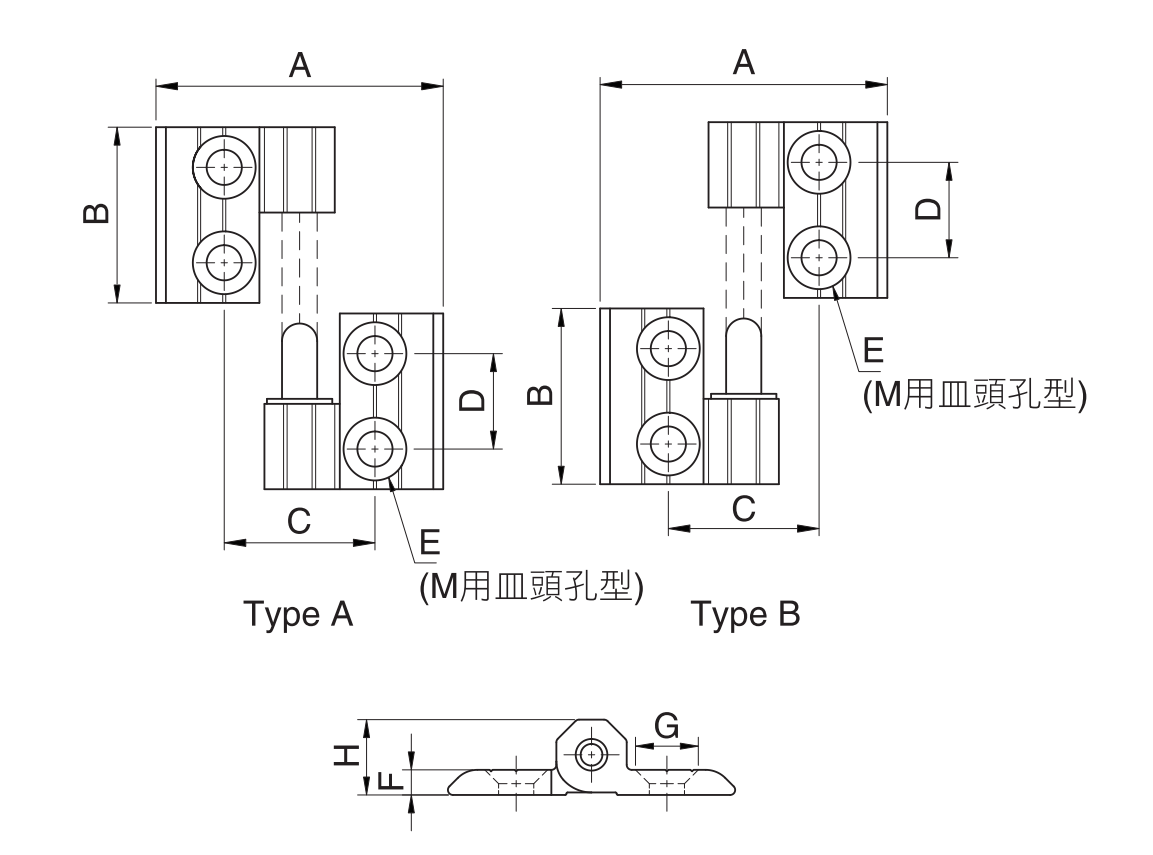

| NO. | Type A | Type B | A | B | C | D | E | F | G | H | 荷重(Kg) |
| 01 | DH30D-R | DH30D-L | 58 | 35 | 30 | 19 | M6 | 5 | 12 | 15 | 30 |
| 02 | DH35D-R | DH35D-L | 58 | 35 | 35 | 19 | M6 | 5 | 12 | 15 | 30 |
| 01 | DH40D-R | DH40D-L | 58 | 35 | 40 | 19 | M6 | 5 | 12 | 15 | 30 |
